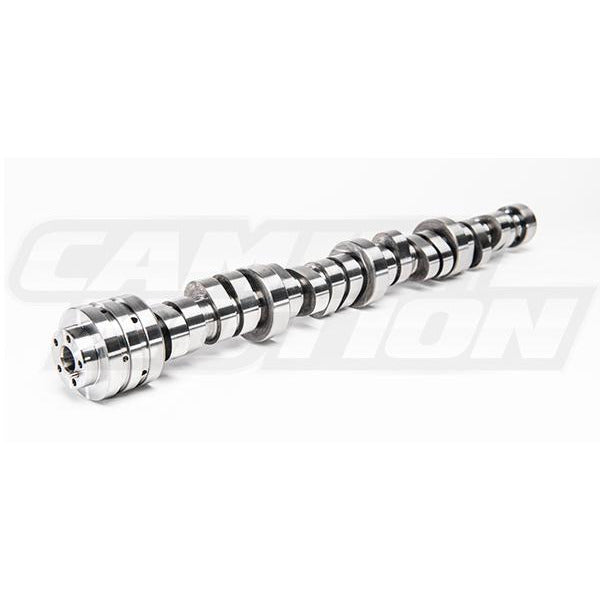

CAM MOTION TITAN 2 VVT GEN3 HEMI

GRIND# XA227/375-XA235/375-13.5+3
Hydraulic Roller Camshaft
Performance
Duration at .050": 227/235
113.5 Lobe Separation Angle
110.5 Intake Centerline
Lift with 1.65 Rocker Arm Ratio: .618"/.618"
Recommended Displacement: 5.7-6.4 Liter Engines
Recommended Compression Ratio: 9.0-11:1
Recommended Headers: 1 3/4"-1 7/8”
Recommended Stall Converter: 2800 to 3500
Recommended Rear Axle Ratio: Stock to 3.92:1

The Titan 2 Gen 3 Hemi VVT-Style High Performance Camshaft is designed for performance in cars using late 5.7 and 6.4 liter VVT-style Gen 3 Hemi engines. The TITAN 2 will have a performance idle with “lope” and improved power in the midrange and upper RPM with emphasis on midrange power and torque. Additional performance gains can be realized when used with headers, an increased stall speed torque converter, free-flowing exhaust and intake systems.

The TITAN series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability.
